 Post subject: Re: Extracting useful data from your OBDII port
PostPosted: Tue Dec 01, 2015 11:59 pm
Offline

Joined: Mon Dec 01, 2014 11:30 am
Posts: 3404
Location: Netherlands, Utrecht area
gwatpe wrote:
Extracting Useful data from the industrial noise type environment of the PHEV is important in the process of interpretation of how PHEV systems interact with each other for a particular driving need.

Anko has made it possible for a commercial OBD app, like Torque PRO, that has logging facilities, to be able to work with the particular MMC computers in the PHEV, using an android device. His efforts cannot be understated, and he now has a method, of obtaining and recording data that has been hidden behind walls of secrets, that would normally only be available to a service dealer with custom MMC tools like a MUT3. Collaboration with others, including the developer of EvBatMon, with beta testing across the planet will hopefully result in apps that give any PHEV owner, access to OBD data, with a relatively cheap adapter and an app on an android smart device.

The standard PID list in Torque PRO, does allow for some data, but as I have found, even this data requires some processing to be useful.

Thanks for the kind words. But lets be careful with filtering out too much (what you call) noise before presenting data. For fuel level type data, of course, you want to average out values read. But for other types of data, you may not want to smoothen things out.

Remember the graphs I presented, that showed how the PHEV plays with the Charge Current to control speed at low SOCs and plays with the throttle to control speed at high SOCs? Too much smoothening-out would have hidden that effect from us.

I am not saying we should not smooth out data here and there. I am just saying we should be careful when doing so ;)


Top
 Profile

 Post subject: Re: Extracting useful data from your OBDII port
PostPosted: Thu Dec 03, 2015 6:05 pm
Offline

Joined: Thu Jul 31, 2014 5:25 am
Posts: 1102
Location: South Australia
Trip costs are a high priority for most drivers, and knowing how many kWh and litres were used for the morning school run compared to the afternoon, and the summer cost vs the winter cost for the same run are questions a PHEV driver might like to have answered. With some logging of the OBD data, we may have a record of what the car did, but the useful cost is a bit harder to get. The PHEV does not have a PID for that. Any tool for analyzing the data has to be easy to use and fast, with minimal user effort, or else the tool will simply not be used routinely.

My windows program can give a breakdown of a trip with litres and kWh and distance and a cost for the trip, as $/100km, for comparisons morning to afternoon, or season to season for the same trip, by clicking on a calendar, and selecting the time portion of interest to display.

It seems that many drivers have the same driving pattern day after day, and are getting conflicting returned economies, or range. If the PID for temperature is also considered with economy and battery data, then some understandings of car operations will possibly become more clear.

here is an example of a trip.


This return trip had an average running cost of $5 per 100km.

Will only need to confirm the calcs vs actual measured data from the petrol pump and kWh meter.

_________________
8kW Solar Self Use, 16kWh 24V LYP battery, 3.3kW Battery Inverter
PHEV Solar Recharging Station
1.7kW Solar Grid connect

Make the GRID your friend.


Top
 Profile

 Post subject: Re: Extracting useful data from your OBDII port -Broken!
PostPosted: Thu Mar 31, 2016 2:44 pm
Offline

Joined: Wed Jul 30, 2014 6:09 am
Posts: 110
Location: Scotland
Tried EVBatmon on my Android tab with obd2 connector - EV SERVICE REQUIRED! engine management light on all the time.

Connector on it's way back to Amazon, last time I fiddle with anything.

I want my MK1 Cortina back.

Chris


Top
 Profile

 Post subject: Re: Extracting useful data from your OBDII port
PostPosted: Tue Apr 19, 2016 1:27 pm
Offline

Joined: Mon Dec 01, 2014 11:30 am
Posts: 3404
Location: Netherlands, Utrecht area
Please, if you are not really interested in CANBUS and OBD tools, do yourself a favour and skip this post. If you decide to continue, do me a favour and don't ask me "why would you". As the only answer I can give you is "not because I have to, but because I can" :mrgreen:

Until a little while ago, I have been capturing OBDII data by sending requests and capturing responses to the requests. There are two disadvantages to this approach:

- It is relatively slow, as a single request may take up to 250 msecs to be fulfilled and for a decent dashboard you may easily need 10 different requests. The result is a sweep time of 2 - 3 seconds. Not very attractive.
- You are transmitting requests ONTO the CANBUS. Compared to the fast amount of data found on the CANBUS at any moment, it is very, very little and should be of no consequence. But yet, there is a tiny risk of interfering.

So, I have been investigating an alternative approach (for example also used by the CANION app for the iMiEV): listening in on the ongoing communication between different ECUs and sensors in the car. The idea is to write a program that monitors all traffic and buffers the last version of each type of data item, so requests from Torque Pro (or any other OBD tool) can be quickly fulfilled by this program using the buffered data. My first tests with very elaborate dashboards show sweep times of (if I have to guess) a quarter of a second. Very promising.

During one of the first road tests I did, I captured about 6.5M data items (filling a 622 MB CSV file) during a 90 minute trip. The amount of data was rather intimidating, but nevertheless I took a crack at it. I was able to recognise quite some interesting parameters. But the parameters I was able to identify seemed mostly related to the 'conventional' part of the car. I could not find anything that seemed related to for example the rear E-motor or the generator. Then I remembered the CANBUS diagrams that have been posted here earlier. Closer study of these diagrams revealed that the main CANBUS is effectively split into two with the PHEV ECU acting as a firewall between the two halves. This is done to limit the amount of traffic on each of the halves. Only data that is needed on both sides is allowed to pass the PHEV ECU from one half to the other. As a consequence, from the OBD diagnostic port you can only listen in on the traffic on one half of the main CANBUS. The half that harbours the more conventional ECUs.

So, this weekend, I used the Russian workshop manuals to locate and identify the wires for the other CANBUS half. I managed to tap into them at the connector that connects the rear E-motor ECU to the CANBUS. To this tap, I connected a female OBD connector, effectively creating a second OBD diagnosis port. Today and yesterday, I have been able to monitor traffic on the second half of the CANBUS with some interesting successes.

One of these successes is that I am now able to monitor SOC at 1/100th (!) of a percent. I can just watch it go up and down while driving .... I can witness SOC go down during coasting, because power is used for eliminating e-drag and such. Very nice.

Below graphs give another idea of the kind of information I was able to retrieve by monitoring the existing communication on the second half CANBUS. I have selected some graphs that focus on the generator. These graphs reflect the last few kms or 7.5 minutes of my 40 km daily commute into the office this morning. I almost made it pure EV this morning, but I fell a few 100 meters short. So, the engine started up when I could already see the office building. Th engine ran for about 65 seconds, 50 of which were the warm up phase, where the engine was not really contributing, and 15 were actually useful. After the 15 seconds I arrived at the last traffic lights and the remainder of the trip was pure EV in the parking lot at very low speed.

Requested Torque for Front and Rear Motor and Generator (approx. 42.000 frames during 7.5 minutes)

This graph shows the PHEV ECU asking the front (red trace) and rear (blue trace) e-motors to propel or slow down the car by requesting positive or negative torque. In the middle section, you see the PHEV ECU asking the generator to start the engine (positive spike in the green trace). Then you see that, during a warm-up phase of 50 seconds, the engine is nearly idling, as the generator is asked to produce only very little resistance (negative torque). In the last 15 seconds, the generator is asked to produce some more resistance / generate a bit more electric power.


Generator Actual Torque and RPM (approx. 42.000 data frames captured during 7.5 minutes)

The purple trace is Actual Torque produced by the generator, positive when starting the engine or negative when generating electric power. Actual Torque follows Requested Torque very closely. The red trace is generator RPM, roughly three times engine RPM, I guess. The brown trace appears to be a 'running state' or such. What the green trace is, I have no idea about yet. I am especially curious about that one, as it is showing activity even before the generator is woken up by the PHEV ECU.


Generator Torque and RPM (zoomed in)

Same as above but zoomed in into the more interesting part of the 7.5 minutes.


Generator Currents (approx. 21.000 data frames captured during 7.5 minutes)

This diagram shows Current 1 and Current 2 on the AC motor / generator (red and blue traces). also, it shows (if I understand correctly) the difference in percentage between target current and real current, for both cCurrent 1 and Current 2 (the green and blue traces hugging the 100 mark all the time). The other two traces I suspect to be coil temperatures, but I have not been able to map them exactly.


Generator Currents (zoomed in)

Same as above but zoomed in into the more interesting part of the 7.5 minutes.

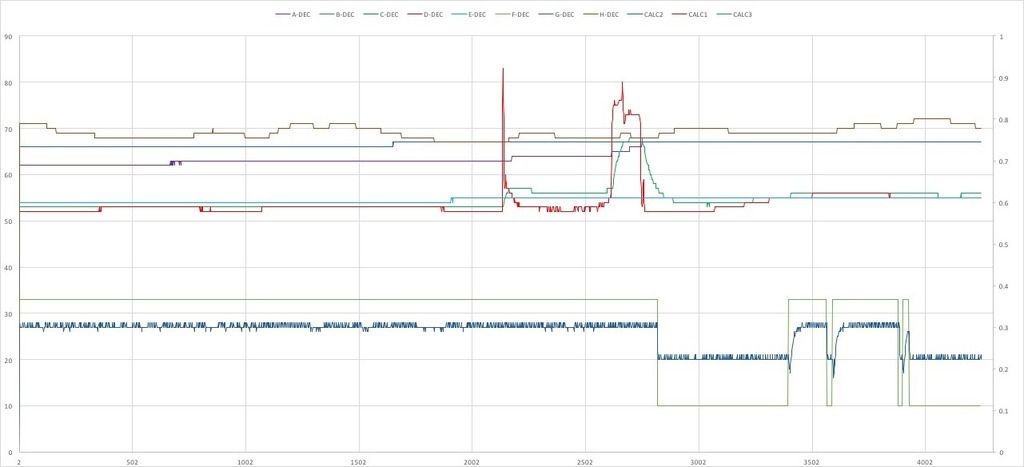

Some undefined stuff (approx. 4.400 data frames captured during 7.5 minutes)

If you have any idea what this could be, by all means, let me know ;)



Top
 Profile

 Post subject: Re: Extracting useful data from your OBDII port
PostPosted: Wed Apr 20, 2016 10:43 am
Offline

Joined: Mon Dec 01, 2014 11:30 am
Posts: 3404
Location: Netherlands, Utrecht area
Also allows me to do this .... :P

https://www.youtube.com/watch?v=Gfci2XKyrwM


Top
 Profile

 Post subject: Re: Extracting useful data from your OBDII port
PostPosted: Mon May 15, 2017 3:42 am
Offline

Joined: Fri Feb 10, 2017 2:22 am
Posts: 74
Location: Lisbon, Portugal
Awesome topic here :)

So Anko, more developments there?

I'm looking into building my own monitoring solution, which would be the conventional request/response method.

I've looked at the first posts and there is a lot valuable information there (thanks anko).

Still, would it be possible to have a complete list of the requests/responses formats available for the PHEV?


Top
 Profile

 Post subject: Re: Extracting useful data from your OBDII port
PostPosted: Sun May 21, 2017 3:32 am
Offline

Joined: Mon Dec 01, 2014 11:30 am
Posts: 3404
Location: Netherlands, Utrecht area
Haven't done much with this lately, other than trying to discover same data via bus monitoring, rather than question / response. And even that has been about a year ago.


Top
 Profile

 Post subject: Re: Extracting useful data from your OBDII port
PostPosted: Sun May 28, 2017 3:04 pm
Offline

Joined: Fri Feb 10, 2017 2:22 am
Posts: 74
Location: Lisbon, Portugal
Ah... that's too bad :/

I'm doing some progress here as you can see bellow:


Have read all your posts, including this one:

viewtopic.php?f=10&t=1655

Still I'm trying to gather a list of requests/responses for all that precious information we are all looking for.

Not trying to do some money with this, whatever that will come out from this it will be available for the comunity.

Doing this just for the fun and because I'm a freak for data and analysis (i'm a data analyst by profession).

Stay tuned!


Top
 Profile

 Post subject: Re: Extracting useful data from your OBDII port
PostPosted: Wed May 31, 2017 3:21 pm
Offline

Joined: Fri Feb 10, 2017 2:22 am
Posts: 74
Location: Lisbon, Portugal
Well, thanks to anko's valuable work I've already managed to roll some numbers. ;)

GPS, bluetooth and ODB interface are all working well and I'm able to request and process nicely the BMU ECU frame.


Still much work to do in the layouts/UI and trip logging, but everything is coming nicely ;)

Stay tuned, I will be probably releasing an early functional version of this that will display all the essential battery data.


Top
 Profile

 Post subject: Re: Extracting useful data from your OBDII port
PostPosted: Wed May 31, 2017 11:51 pm
Offline

Joined: Mon Sep 26, 2016 11:18 pm
Posts: 1058
Location: Poland
Great work "GreyBigFoot"

For me it will be nice to be able to have logging of data .. something that EvBatMon is a bit weak.

If you also are able to send some error code .. like the failure that happen when the fuse of the fuel pomp is disabled .. it will be a great work around for have pure EV mode on any PHEV


Top
